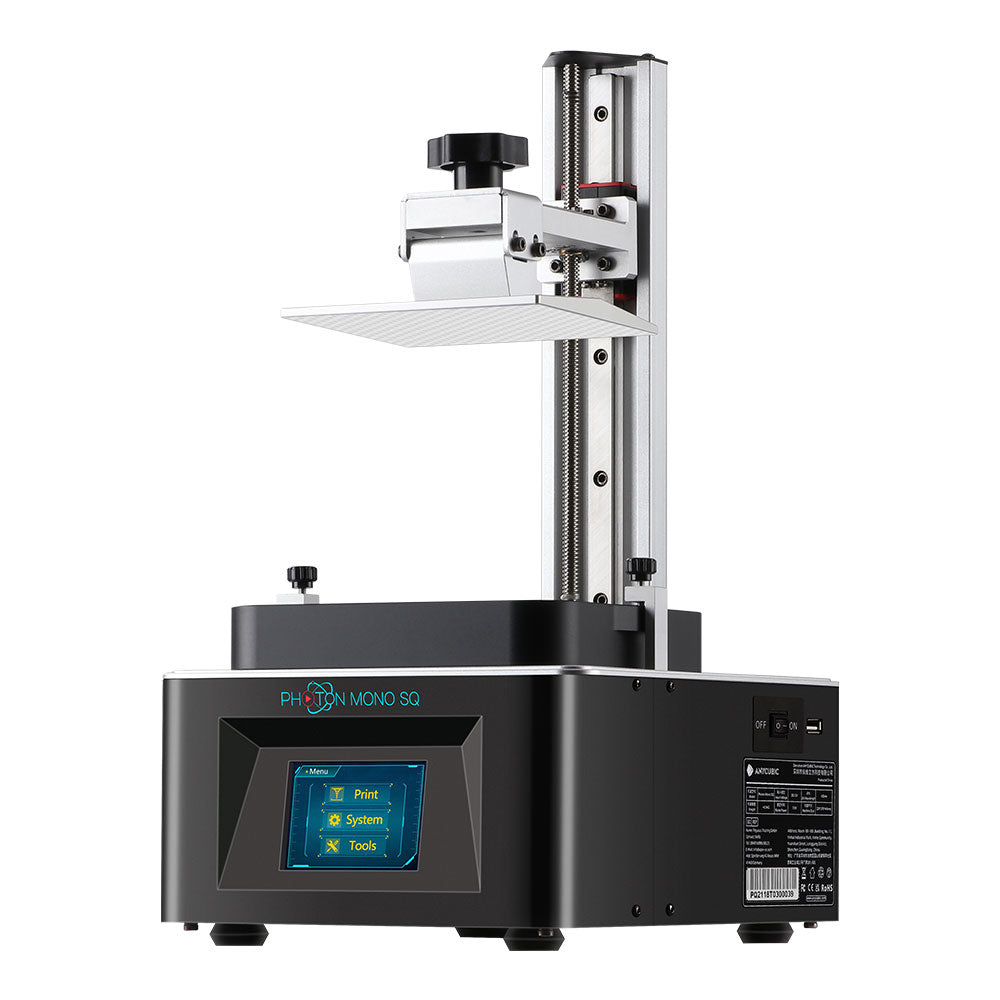

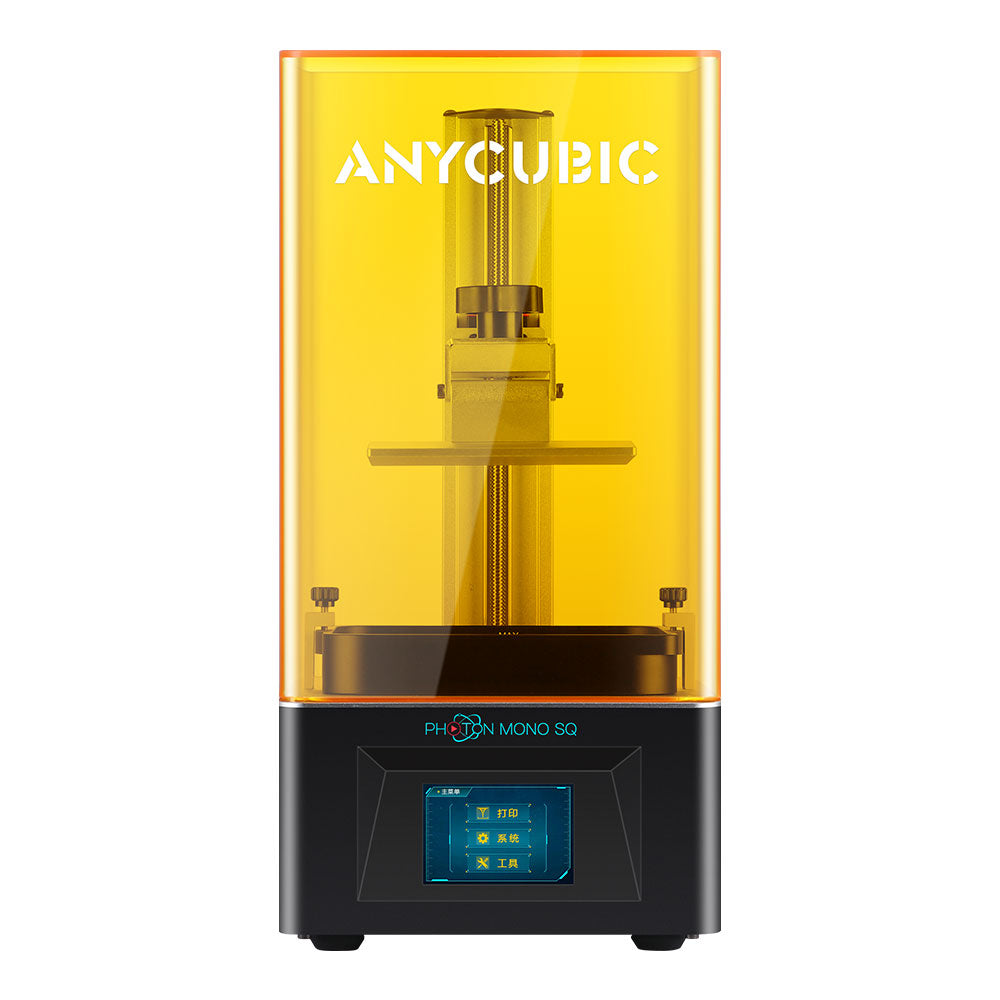

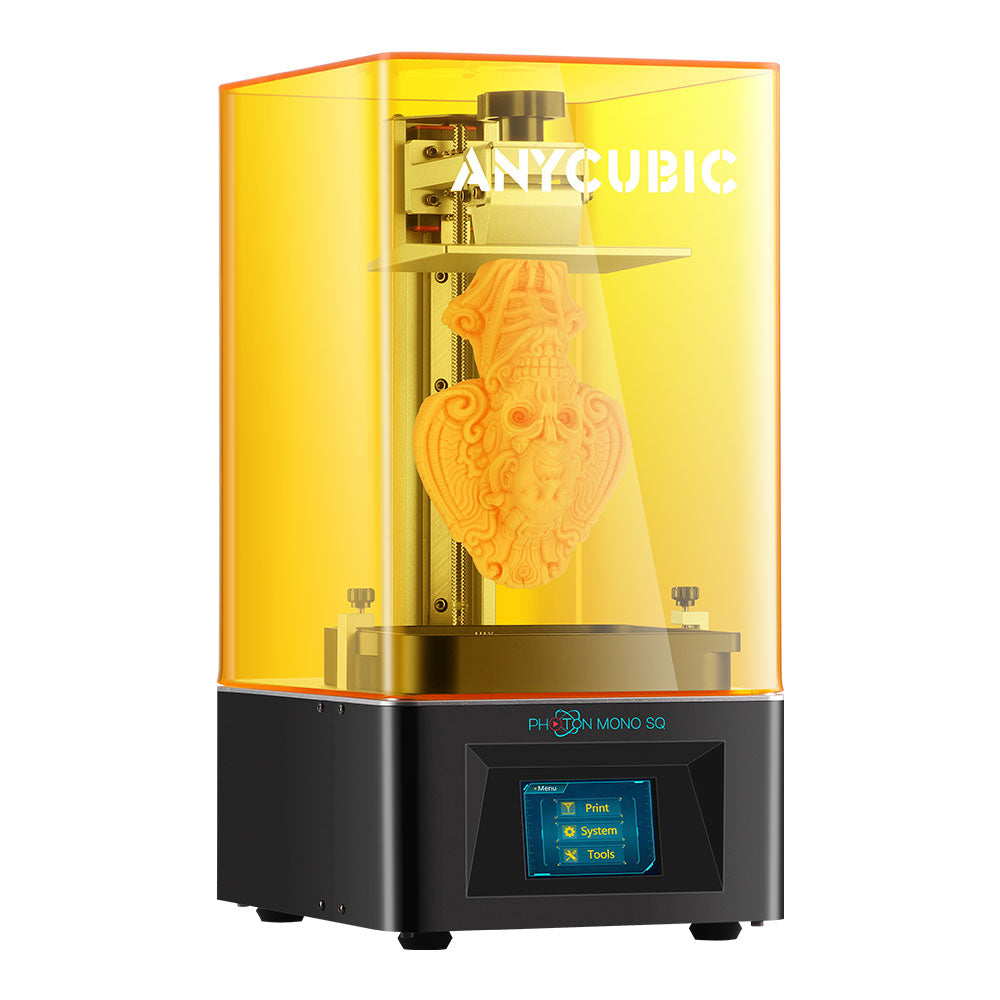

Anycubic Photon Mono SQ
Regular price
$339.00
Regular price
Sale price
$339.00
Unit price
per
Couldn't load pickup availability
Regular price
$339.00
Regular price
Sale price
$339.00
Sorry, Anycubic Photon Mono SQ is sold out.
Upgrade to our latest model Anycubic Photon Mono 2.
Product Description
- Fast print speed
- Three times faster than the original Photon.
- Large build volume
- The build volume of 128mm x 120mm x 200 mm.
- Secure power
- The UV power could be adjustable from 30% to 100%.
- Quick slice
- Brings more accuracy for leveling.
- Technical Specifications
- ● Operating screen: 3.5 inch resistive touch screen
- ● Slicing software: ANYCUBIC Photon workshop
- ● Connection: USB drive
- ● Light-source: Matrix light source (wavelength 405nm)
- ● XY Res.: 0.050mm 2560*2400 (3K)
- ● Z Axis Res.: 0.01mm
- ● Layer thickness: 0.01 ~ 0.15mm
- ● Printing Speed: MAX 60mm/h
- ● Rated Power: 66W
- ● Printer Size :270mm(L)*220mm(W)*445mm(H)
- ● Build Volume: 128mm(L)*120mm(W)*200mm(H)
- ● Printer Weight: ~8.5kg
- ● Boxed size:295mm(L)*345mm(W)*550mm(H)
- ● Weight (packed): ~9kg

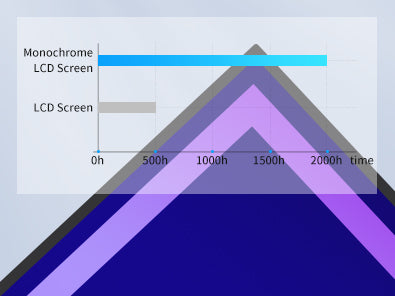

- 6.9'' 3K Monochrome screen
- The life span of the Monochrome LCD screen can last 2000 hours.
- Anycubic slicer software
- It features faster operating, complete functions, hollow interior, text paste, model cutting, etc.

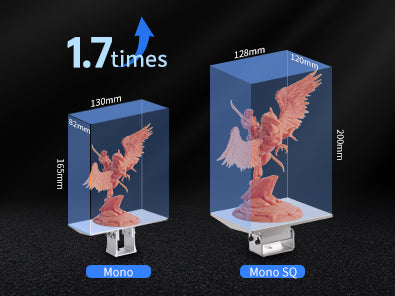

- Large build volume
- 1.7 times larger than the Photon Mono/Mono SE.
- Anti-scratch FEP film
- Prevent resin leaking and pollution, thus protecting the LCD screen and extending its life span.
- Fast print speed
- Max print speed is 60 mm per hour.
- High stability
- It is the combination of a high-quality Z-axis rail structure, silk rod motor and clearance nut.
- New Light Source
- More durable and has a longer life span and offers a more solid and uniform light source.
- Adjustable UV power
- allowing the printer to process a wide variety of resins.
- User-friendly interface
- More convenient and intuitive to operate and make the parameter adjustment.
Parts List
User Manual
Tool set
USB Drive
Scraper
Resin Vat
Platform
Leveling Paper
Glove
Funnel
Power Adapter
| Printing Technology | LCD-based SLA Printing | LCD-based SLA Printing | FDM (Fused Deposition Modeling) |
| Build volume | 130x80x165mm | 192x120x245mm | 245x245x260mm |
| Print Materials | 405nm UV Resin | 405nm UV Resin | PLA, ABS, HIPS, PETG, Wood and TPU |
| Illuminant | Matrix | Matrix | None |
-
- Photon Mono
- LCD-based SLA
- Build Area: 130x80x165mm
- Filament:405nm UV Resin
- Diffusion: Matrix
-
- Photon Mono X
- LCD-based SLA
- Build Area: 192x120x245mm
- Filament:405nm UV Resin
- Matrix: Matrix
-
- Vyper
- FDM (Fused Deposition Modeling)
- Build Area: 245x245x260mm
- Filament: PLA, ABS, HIPS, PETG,
Wood and TPU
